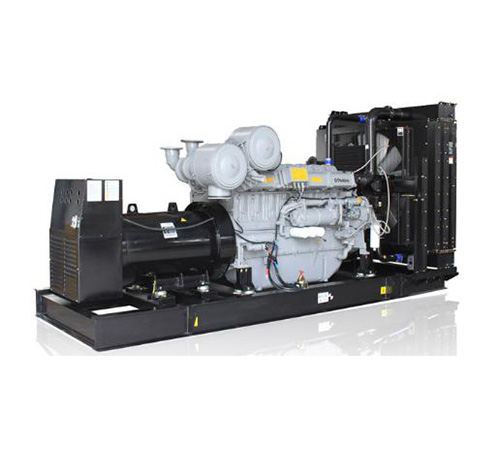

Parkins diesel generator set

Quantity:

Starlight /PerkinsseriesDiesel generator setsIt is the diesel engine of Parkins Power Co., Ltd., which is equipped with a generator that brushlessly self-controlled AVR control, and the power grade is 24kW-1800KW, which is deeply loved by users at home and abroad.


20130516113125609


Features of the Parkins diesel generator set:

1,Parkins generator setElectrical performance:
Compliant with GB2820 and ISO8528 / 3 standards. And comply with the postal system YD / T502 communication dedicatedDiesel generator setsTechnical requirements.
Rated voltage: 400 / 230V

Wiring method: 3-phase 4 line
Frequency: 50Hz
Rated power factor: 0.8 (lag)
Inhibition of radio interference: compliance with VDE0875-N level and GB2820
2, Parkins generator set unit standard:
Compliant with international standards such as GB / T2819, ISO8528, IEC34;
generatorThe rated output power of the unit is compliant;
Altitude does not exceed 1000 meters;
Ambient temperature 0 ° C ~ 40 ° C;
Air relative humidity is 60%;

3, Parkins generator set Alternator:
Excitation method: brushless self-excitation
Insulation Level: H
Protection level: IP21 ~ IP23
Voltage regulation: automatic adjustment

4, Parkins generator set control box:
There are different types of control boxes such as manual, automatic, remote monitoring, automatic intelligence. Basically, there is a voltage meter, current table, water temperature meter, hydraulic table, controller, emergency parking button, preheating button, battery voltage meter, timeline, phase selection switch, etc.


Parkins diesel generator set after-sales service

1. Our company has established the after-sales service center in Urumqi, Korle, Kashgar, Yili, Hama, and Aksu, and is equipped with enough spare parts. After receiving the user's service information, it will feed back information within 2 hours. The city has arrived at the scene within 6 hours, and the maintenance plan is proposed within 1 hour, and the reboot is guaranteed within 2 hours. 150 km outside 24 hours arrived.

2. In the warranty period, the user is guided by the product to be maintained and maintained every year, and 15 days before the end of the warranty period, specialists will conduct maintenance and maintenance of users.

3. Users are damaged by people in the process of use, and our company provides technical services, actively help repairs.

After-sales service: 17704919966 0991-3817210 0991-3856119

400 Free Tel: 400-0991036


Pavins diesel generator set model reference table

model

Output power (KW / kVA)

Diesel engine model

Generator model

Dimensions L * W * h (mm)

Units (kg)

XG-24GF

24/30

1103A-33G

Star STC-24

1750 * 710 * 1324

660

XG-36GF

36/45

1103-33TG1

Starlight STC-36

1950 * 752 * 1200

800

XG-48GF

48/60

1103A-33TG2

Starlight TFW-48

1950 * 752 * 1200

820

XG-75GF

75 / 93.75

1104C-44TAG1

Starlight TFW-75

2100 * 752 * 1300

900

XG-100GF

100/125

1004C-44TAG2

Starlight TFW-100

2300 * 752 * 1300

1100

XG-120GF

120/150

1006TAG2

Star TFW-120

2700 * 780 * 1300

1350

XG-150GF

150 / 187.5

1106C-E66TAG3

Starlight TFW-150

2700 * 780 * 1300

1400

XG-200GF

200/250

1306C-E87TAG6

Starlight TFW-200

3000 * 870 * 1560

1800

XG-300GF

300/375

2206C-E13TAG2

Starlight TFW-300

3150 * 950 * 1900

2400

XG-300GF

300/375

2206C-E13TAG3

Starlight TFW-300




Get product offerings
