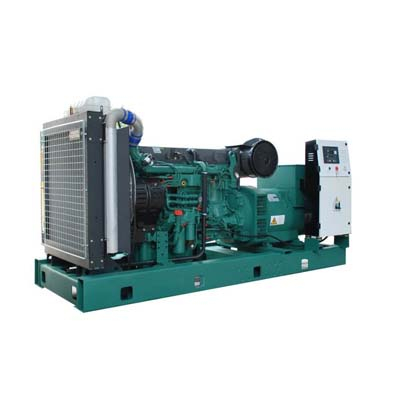

Automated diesel generator set

Availability:
Quantity:

Automated diesel generator set


The various automated diesel generator sets produced by our company have been widely used in large-scale hotels, institutions, research center industrial and mining enterprises, hospitals, post and telecommunications and special projects to ensure that important sectors can latency in various faults, at 10-15 seconds. Safe, reliably provide normal power supply.

Various technical indicators in the unit comply with GB2820-97 "General Technical Conditions for IF Diesel Generation Unit" and Urban and Rural Construction Environmental Protection Department JGJ16-83 Construction Electrical Design Technical Procedures.

(1) Basic function:

1. When the market is faulty breakpoint, the automated unit can be immediately activated and powered network.

2. When the market is broken, the undervoltage or voltage generated, the frequency is seriously abnormal, and the unit can immediately start the unit and supply power.

3. When the market resumption is normal, the unit switch can be automatically removed, and the stop is stopped, and the next self-start preparation is ready.

4. Function is two or more parallel operations, or manual synchronization, coarse synchronization or automatic synchronization pair, with synchronous check, reverse power, reactor, and automatic neat controller.

5. The generator set control screen has an AC voltmeter, AC meter; active power meter, power factor table, frequency table, DC voltage meter, and generator operation timer, can also increase the power meter according to user requirements, reactive Power meter. DC current tables and combined episode indicator tables.

6. Diesel oil panels are equipped with water temperature meters, oil temperature meters, and oil pressure gauges, and can also increase exhaust thermometers according to user requirements.

7. When the unit is on the downtime, the diesel engine can automatically control the diesel engine pre-lubrication according to the predetermined requirements.

8. When the unit appears in the unit, the signal or instruction can be issued:

(1) When the cooling water temperature exceeds, a sound and light alarm is issued and delays.

(2) When the lubricating oil temperature is exceeded, a sound and light alarm is issued and delays.

(3) When starting three times in succession, a sound and light alarm is issued and automatically started.

(4) When the diesel engine exceeds the rated speed of 112% -115%, a sound and light alarm is issued and automatically stops immediately.

(5) When the lubricating oil is low, sound and light alarm is issued and automatically stops immediately.

(6) When the generator is overvolt, a sound and light alarm is issued and immediately cut off the main switch.

(7) When the generator is under voltage, a sound and light alarm is issued and immediately cut off the main switch.

(8) When the generator is overcurrent, turn off the main switch immediately.

(9) When the generator generates inverse power, the main switch is cut off according to the value of the rated current value or instantaneously cut off.

9, the unit also has the artificial operation function, manually launched the diesel engine, stops, and manually and gains with the power switch main switch.

10. Other users specially needed to add functions, but also.
